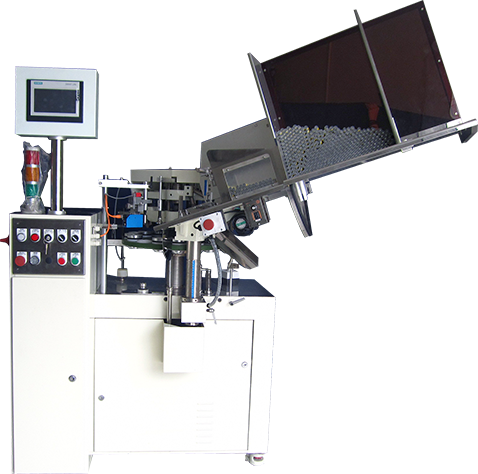

Automaticaluminum tube filling and sealing machinePH-S100
Models: PH-S100
Filling speed:75tubes/min
Suitable packaging materials: Aluminum
Filling capacity: 0.5ml~40ml
Hose length: 48mm~135mm
Diameter range: 10mm~25mm
Filling raw materials: water, glue,
Emulsion type, water color, etc.
technical introduction
Machine model PH-S100
Production speed 75
Tube diameter Φ10-Φ40mm
Hose length 48-135mm
Filling capacity 3-185ml
Host motor 2 HP (1.5 KW)
Machine weight Net.500 kg / Gr.1000 kg
Packing size 1.5(L) x 1.5 (W) x 1.7 (H)
Air pressure 0 bars
Air consumption 0 L/min
Operators 1人
